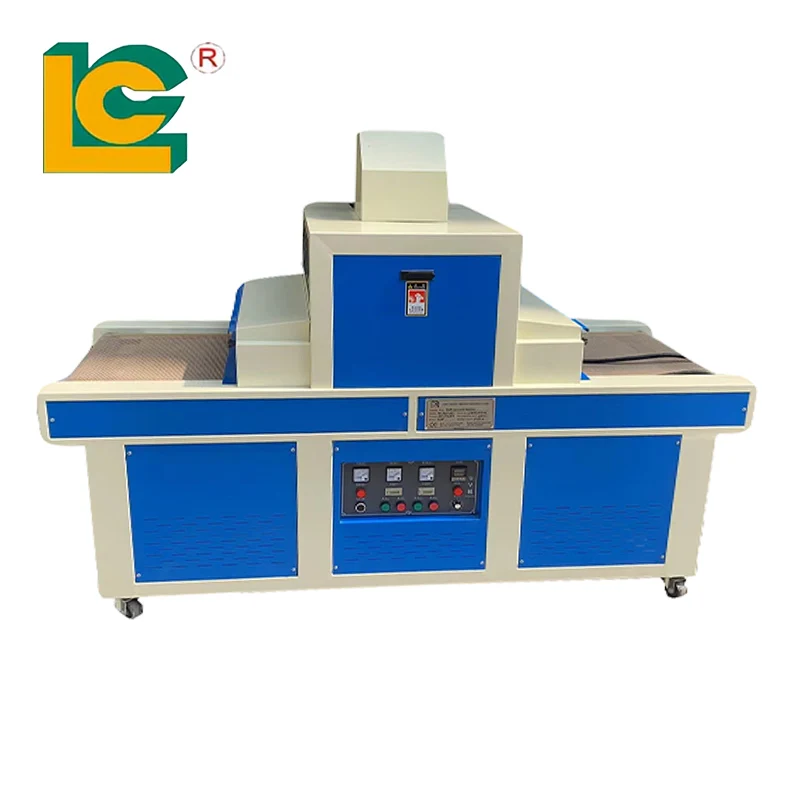

High Quality UV Drying UV Curing Dryer machine for screen Printing uv ink dryer

Model No.︰TM-600UVF
Brand Name︰LC
Country of Origin︰China
Order︰1 unit
Product Description

UV Curing Machine TM-600UVF be fit to UV curing drying ,for plastic,Paper ,pvc, PP Sheets, wooden floor board ,UV POLISHING ,PVC,PET , PCB after printing UV printing, electronic product UV sparying , UV pritning, packing products UV drying .

UV Lamp lifetime can reach 1000-1200 hour. Lowest and highest UV lamp operating temperature is 50 degrees Celsius and 75 degrees Celsius respectively. Driven by well-known motor, stepless speed adjustment.The Conveyor speed can be adjusted according to product’s characteristics

Specification
Model number
TM-500UVF
TM-600UVF
TM-700UVF
TM-800UVF
TM-900UVF
TM-1200UVF
max product width
500mm
600mm
700mm
800mm
900mm
1200mm
max product length
2000mm
2000mm
2000mm
3000mm
3000mm
3000mm
UV Process shine area
500*2000mm
600×2000mm
700×2000mm
800*3000mm
900*3000mm
1200*3000mm
conveyer speed:
0-10m/min
0-10m/min
0-10m/min
0-10m/min
0-10m/min
0-10m/min
UV Lamp power
3KW ×2PCS/
3KW ×2 PCS/
3KW ×2 PCS/
5KW*2pcs
5.6KW*2PCS
5.6KW*2 PCS
UV Machine Dimension:
2020×550×1200mm
2020*650*1200mm
2020*750*1200mm
3020*850*1200mm
3020*950*1200mm
3020*1250*1200mm
