Factory Direct Small Coating Machine Dryer Unit Ink Uv Curing Oven For Cards And Paper

Model No.︰TM-400UVF
Brand Name︰LC
Country of Origin︰China
Order︰1 unit
Product Discription

TM-400UVF UV curing machine
UV Lamp lifetime can reach 1000-1200 hours. The lowest and highest UV lamp operating energy is 50 degrees Celsius and 75 degrees Celsius respectively.
  Dedicated high-speed UV curing machine use of imported low-temperature high-intensity UV lamp which is a high purity using a light-emitting electrode, filled with the high-purity exact proportion of glowing gas, via technology to produce high-pressure mercury lamp, with small working current, low temperature, high strength performance.
  This UV lamp than common UV lamp temperature less than 40%, the UV lamp intensity more than 100%.

Advantage
1. The conveyor speed can adjustment

according to the products drying condition;
2. Conveyer belt made by lifelong materials;

3. Famous brand UV lamp installed ;
4. Cooling fan installed on the side to remove

the heat in curing chamber;
5. Tabletop working and save room area.

Application:

Our UV Curing Machine is fit for UV drying, paper UV printing, UV polishing, PVC, PET, PCB after printing UV printing, electronic product UV spraying, packing products UV drying, etc.
Specifications
UV Drying products
400*1200mm
Conveyor belt size
400*1200mm
UV Lamp power
2PCS*2KW /380V
Wind fan wattage
500W/380V
motor wattage
1000W/1P/380V
Total wattage
7.5KW
Conveyor speed
0~30m/min
Speed change ways
Continue
UV Machine Dimension
1300*420*750mm
Weight
165kg

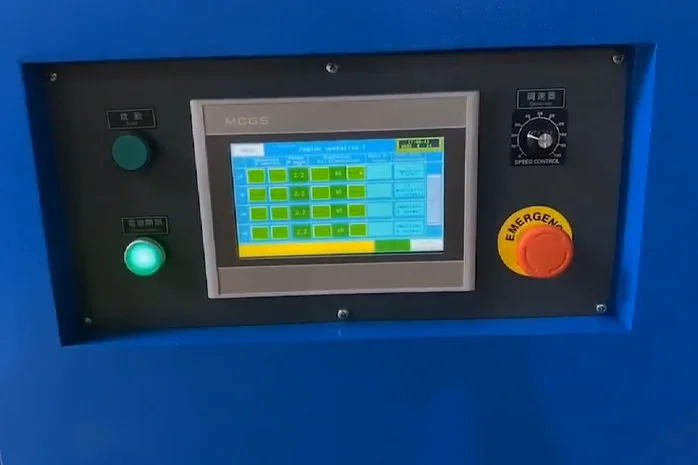

PLC control panel

2PCS UV lamps conveyor belt
